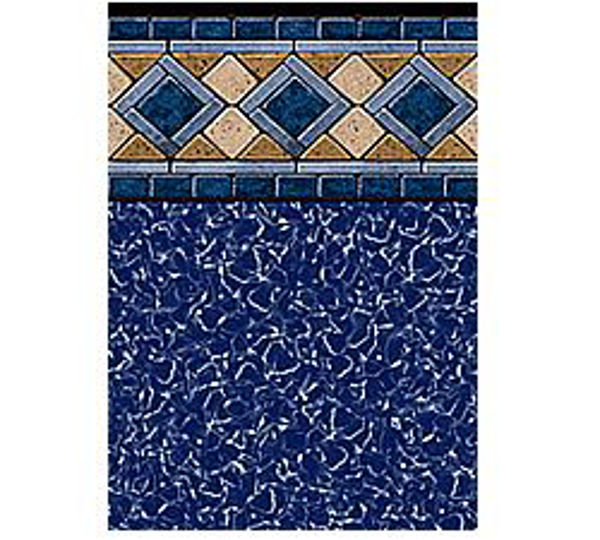

7.5 Trojan Metric Pool Replacement Liner For 48" Pool Grand Tile

Manufacturer: Radiant - Trojan
SKU: RAD-LIN-7.5M
€731.17
decrease increase

The Metric 7.5 Replacement liner is made to fit the Trojan brand insulated wall metric above ground pool. This strong 25 gauge beaded vinyl liner hangs seamlessly in the top rail. Fits Trojan brand above ground pools. (If you purchased your pool before December of 2005 the walls will need to be measured.)

  • 25 gauge vinyl
  • Beaded rim made to fit trojan coping
  • Beautiful tile and print pattern
  • Made in the USA

Trojan - Radiant Pool: Metric Liner Installation:
Trojan metric pool liner installationClear all sticks and sharp objects from an area near the pool that is as large as the pool itself. Remove the liner from its carton and unfold and open the liner. Refold the liner so that it can easily be carried to the pool and unfold from the outside of the pool. Check to make sure the sand in the pool is level and that there are no sharp objects in the pool. Place the liner into the pool while holding onto the top of the wall section of the liner. Snap the bead of the liner into the bead receiver around the entire pool. Gently pull on the liner and use a soft bristle broom to remove as many wrinkles as possible on the bottom of the pool. Start filling the pool slowly with water. Continue pulling gently and working the liner with a broom as needed. Some wrinkling of the liner may be evident and in no way affects the structural strength of your pool. You can continue to work out the wrinkles as needed by pulling gently on the liner or by using a broom.

Trojan - Radiant Pool: Replacing the plastic coping:
Trojan-Liner-Coping-installationThe plastic coping is attached by simply snapping over the pool wall. Each coping joint should correspond with a wall joint. You need to leave a 1? gap between lengths of coping. Once all of the coping has been placed, secure the coping to the pool wall with the white cap screws provided. Using a 3/32? drill bit, drill through the plastic coping and exterior pool wall while pressing down firmly on the coping on top of pool wall. Using a Phillips screw driver, hand tighten each screw. DO NOT OVERTIGHTEN. For the 18? pool, the screw spacing should be approximately 24? beginning with the first screw approximately 2-3? over from a compression seam. For all other pool sizes, the screw spacing should be approximately 29? beginning with the first screw approximately 2-3? over from a panel joint. The beaded vinyl liner with the weight of the pool water will draw coping into place and level on the interior of the pool wall.

The Metric 7.5 Replacement liner is made to fit the Trojan brand insulated wall metric above ground pool. This strong 25 gauge beaded vinyl liner hangs seamlessly in the top rail. Fits Trojan brand above ground pools. (If you purchased your pool before December of 2005 the walls will need to be measured.)

  • 25 gauge vinyl
  • Beaded rim made to fit trojan coping
  • Beautiful tile and print pattern
  • Made in the USA

Trojan - Radiant Pool: Metric Liner Installation:
Trojan metric pool liner installationClear all sticks and sharp objects from an area near the pool that is as large as the pool itself. Remove the liner from its carton and unfold and open the liner. Refold the liner so that it can easily be carried to the pool and unfold from the outside of the pool. Check to make sure the sand in the pool is level and that there are no sharp objects in the pool. Place the liner into the pool while holding onto the top of the wall section of the liner. Snap the bead of the liner into the bead receiver around the entire pool. Gently pull on the liner and use a soft bristle broom to remove as many wrinkles as possible on the bottom of the pool. Start filling the pool slowly with water. Continue pulling gently and working the liner with a broom as needed. Some wrinkling of the liner may be evident and in no way affects the structural strength of your pool. You can continue to work out the wrinkles as needed by pulling gently on the liner or by using a broom.

Trojan - Radiant Pool: Replacing the plastic coping:
Trojan-Liner-Coping-installationThe plastic coping is attached by simply snapping over the pool wall. Each coping joint should correspond with a wall joint. You need to leave a 1? gap between lengths of coping. Once all of the coping has been placed, secure the coping to the pool wall with the white cap screws provided. Using a 3/32? drill bit, drill through the plastic coping and exterior pool wall while pressing down firmly on the coping on top of pool wall. Using a Phillips screw driver, hand tighten each screw. DO NOT OVERTIGHTEN. For the 18? pool, the screw spacing should be approximately 24? beginning with the first screw approximately 2-3? over from a compression seam. For all other pool sizes, the screw spacing should be approximately 29? beginning with the first screw approximately 2-3? over from a panel joint. The beaded vinyl liner with the weight of the pool water will draw coping into place and level on the interior of the pool wall.

Products specifications
Size Fits: 7.5 Metric Trojan Insulated Pools
Dimensions Style: Beaded Print Liner
Includes Quality: 25 guage vinyl - Limited lifetime warranty
Specifics The Metric 7.5 Replacement liner is made to fit the Trojan brand insulated wall metric above ground pool. This strong 25 gauge beaded vinyl liner hangs seamlessly in the top rail and comes with a lifetime limited warranty.
Product Style Universal
Product Type 7.5 Metric Pool Liner
Weight Print: grand Tile with Reflections FloorReplacement coping (2" wide x 8' long): The coping pieces sets on top of the pool wall and contains the receiving track for the beaded liner - replace any fragile coping pieces in order for proper liner installation.
Write your own review
  • Only registered users can write reviews
*
*
Bad
Excellent
*
*
*
Products specifications
Size Fits: 7.5 Metric Trojan Insulated Pools
Dimensions Style: Beaded Print Liner
Includes Quality: 25 guage vinyl - Limited lifetime warranty
Specifics The Metric 7.5 Replacement liner is made to fit the Trojan brand insulated wall metric above ground pool. This strong 25 gauge beaded vinyl liner hangs seamlessly in the top rail and comes with a lifetime limited warranty.
Product Style Universal
Product Type 7.5 Metric Pool Liner
Weight Print: grand Tile with Reflections FloorReplacement coping (2" wide x 8' long): The coping pieces sets on top of the pool wall and contains the receiving track for the beaded liner - replace any fragile coping pieces in order for proper liner installation.
